Description
FFX 0205
Longer outer tubes increasing bushing overlap.
A greater overlap reduces the radial force on the bushing resulting in lower level of friction under load.

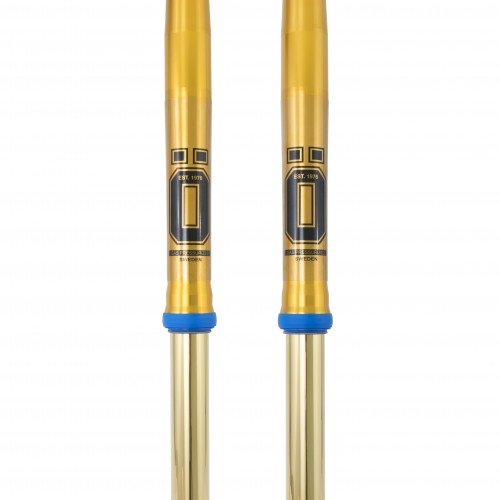

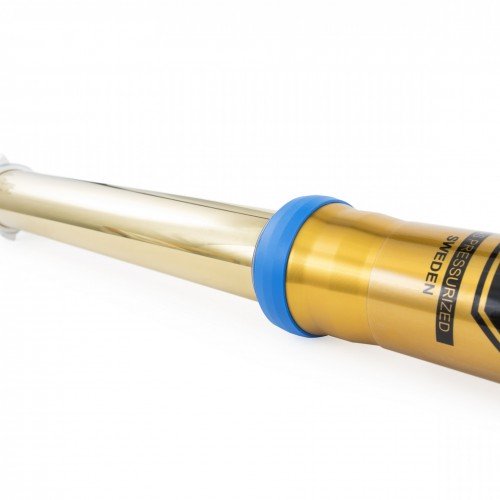

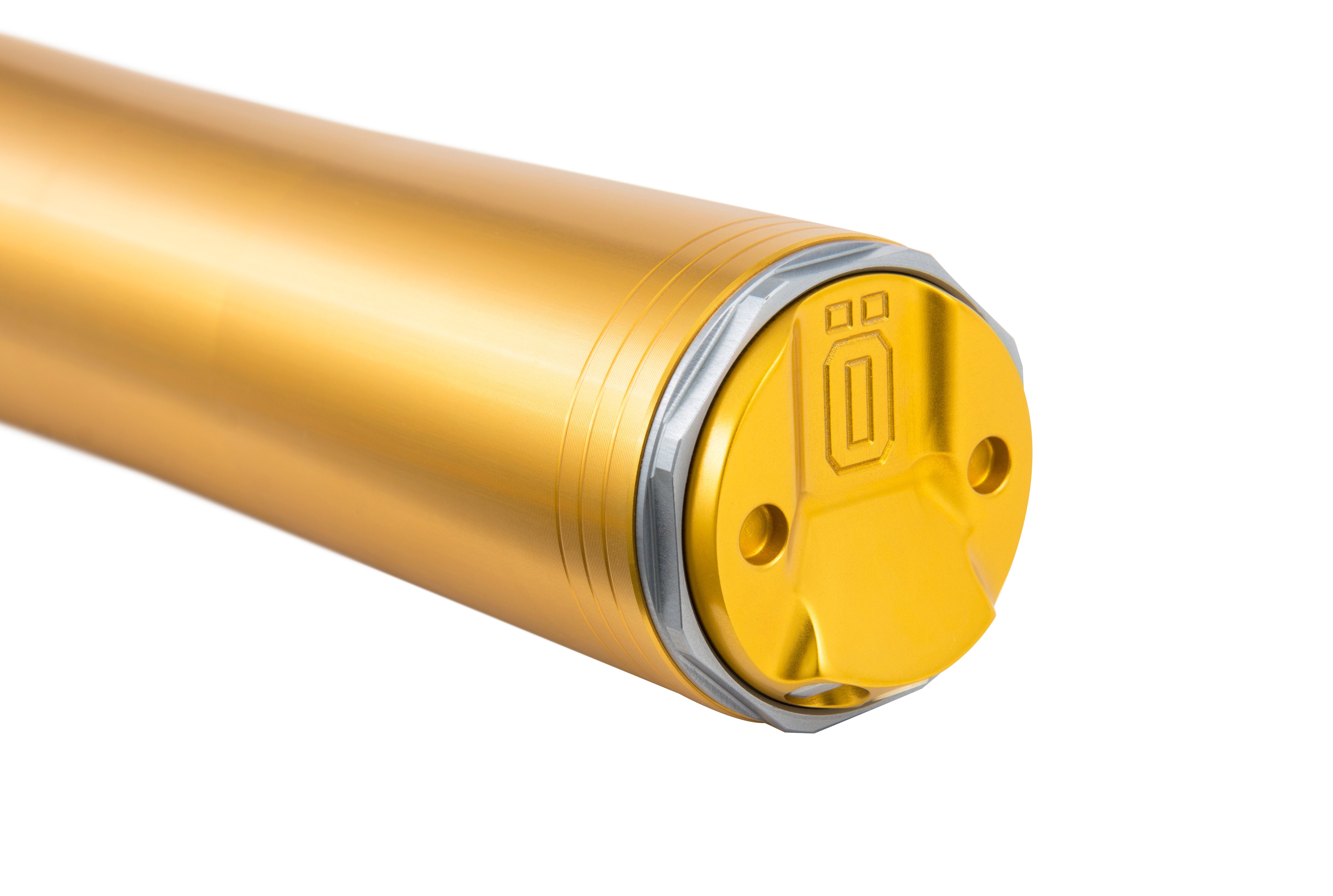

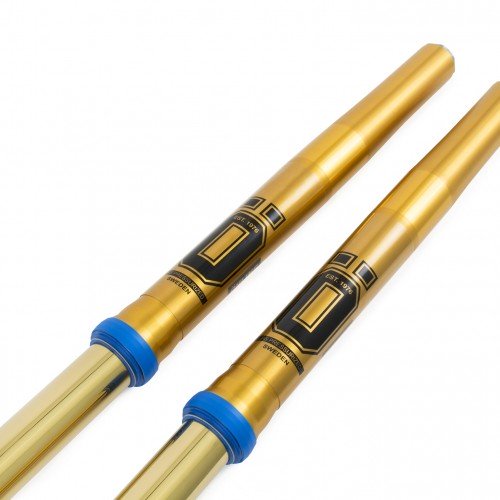

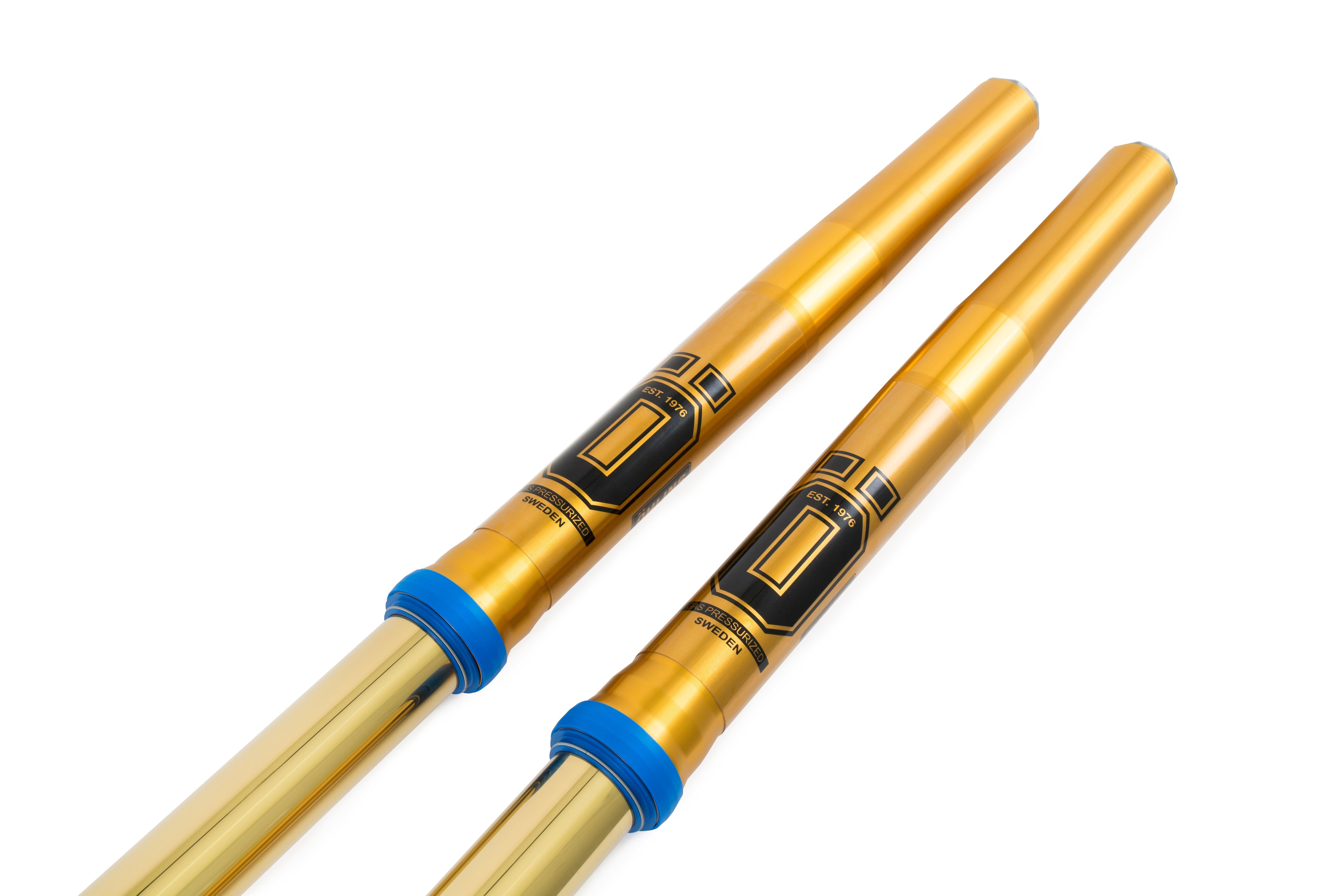

Öhlins RXF 48 S takes your ride to another level, and with the 2021 & 2022 updates you'll achieve faster lap times with smoother landings.
With a refined micro finishing process applied to the TiN coating (Titanium-nitride) on the inner fork tuber, we've managed to reduce friction against both bushings and seals.
Together with a new flex honing process of the inner tubes, the 2021 & 2022 version of the RXF 48 S gives you a better contact area on the main spring.
No matter what track you're racing, our updated RXF 48 S fork will help you conquer your toughest ride yet.
Tech
- TTX-technology
- Improved traction
- Top out springs for greater progressive feel at the top of the stroke
- More comfort
- Higher definition front wheel feedback
- Great dynamic performance
- Gold colored surface treatment
- Compression adjuster, angled for easy access
- Rebound adjuster underneath the fork
- Hydraulic stops for great bottoming resistance
- Gold and blue color scheme
Spec. by Application for FFX 0205
Application: 2013-2022 Suzuki RM-Z 250
Notes: 08765- spring series *Replaces FGSU 2196*
Length: 943 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-47
Type code: T22DR1C1
Product Family: RXF 48
Application: 2013-2022 Suzuki RM-Z 450
Notes: 08765- spring series *Replaces FGSU 2196*
Length: 943 mm
Stroke: 301 mm
Recommended Ohlins Oil: 1330
Fitted Spring: 08765-47
Type code: T22DR1C1
Product Family: RXF 48
Fitment
Fitment
This item may fit other vehicles not listed here.| Suzuki | RM-Z 250 | 2013-2022 |
| Suzuki | RM-Z 450 | 2013-2022 |
