Description
YA 580

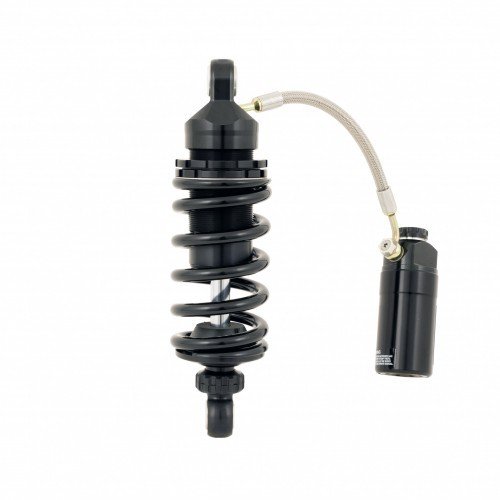

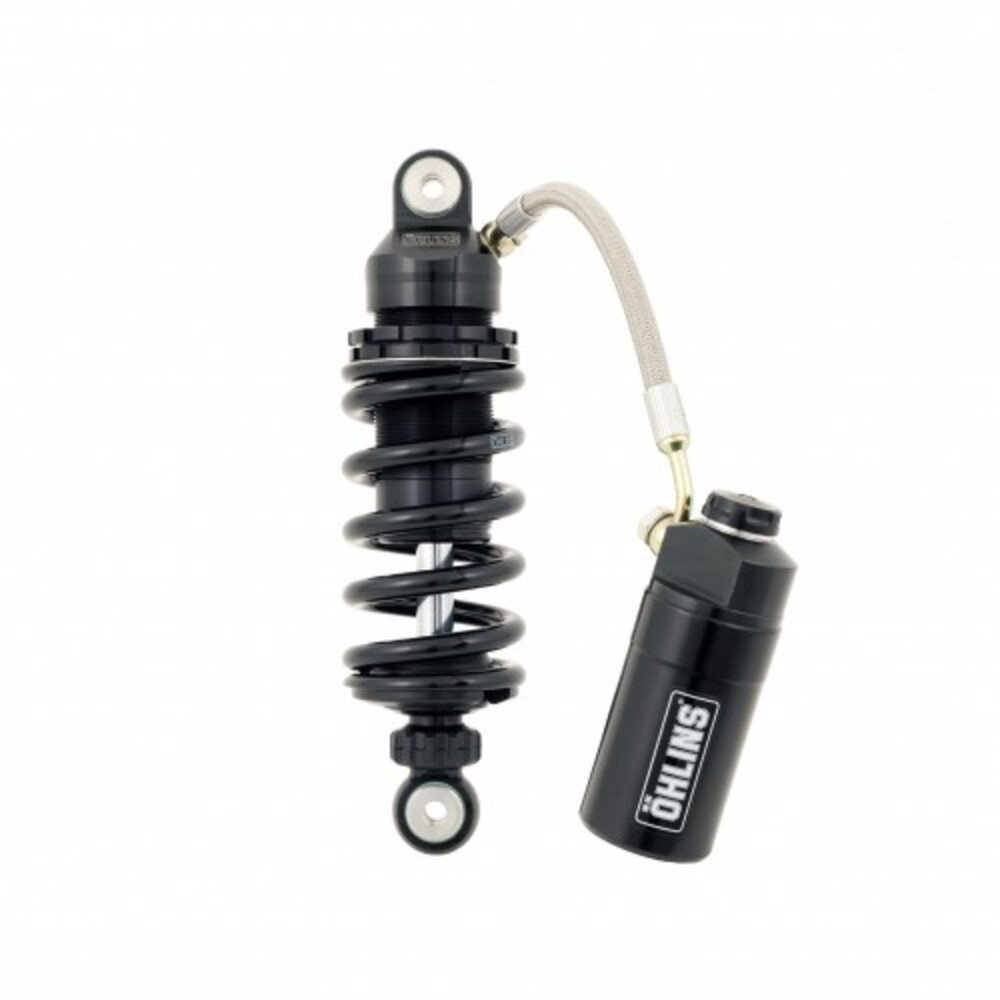

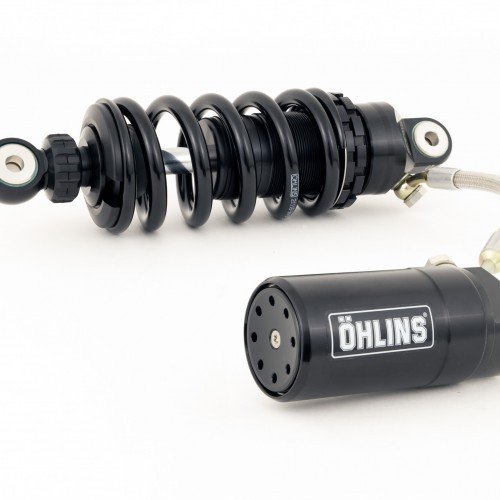

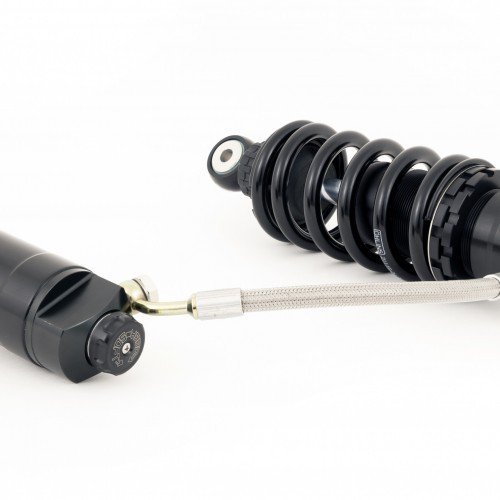

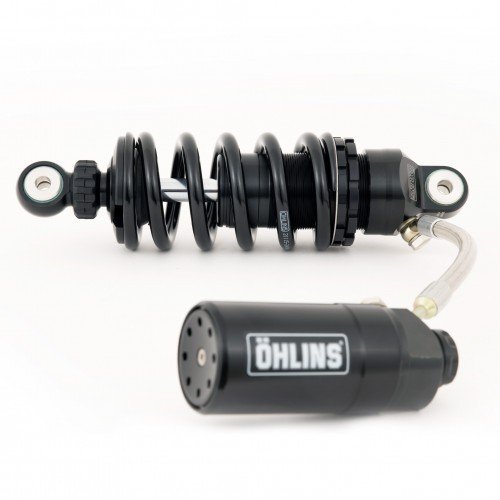

The STX46 Street Performance Line is based on our popular STX46 DR1 shock absorber and developed for naked sports bikes and street performance bikes.
It features a large 46mm main piston and a Hose mounted reservoir with Compression and Rebound adjustability.
With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike.
This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.
Type Code: S46HR1C1S
Tech
- Monotube shock absorber with Hose mounted Reservoir
- High Pressure Nitrogen Gas Charged
- Adjustable rebound damping and compression
- Top Level Comfort, Rideability and Performance
- A range of spring rates available
- Fully Serviceable and Repairable
- Low-friction Shaft / Seal Head Design
- Hard Anodized - Precision CNC-Machined Components
Spec. by Application for YA 580
Application: 2021-2023 Yamaha MT-09 (FZ-09)
Notes:
Length: 329 mm
Stroke: 65 mm
Spring Rate: 95 N/mm n/m
Fitted Spring: 21102-29
Mounting Position: Rear Mono
Type code: S46HR1C1S
Product Family: STX 46 Blackline
Fitment
Fitment
This item may fit other vehicles not listed here.| Yamaha | MT-09 (FZ-09) | 2021-2023 |
