Description
HO 216

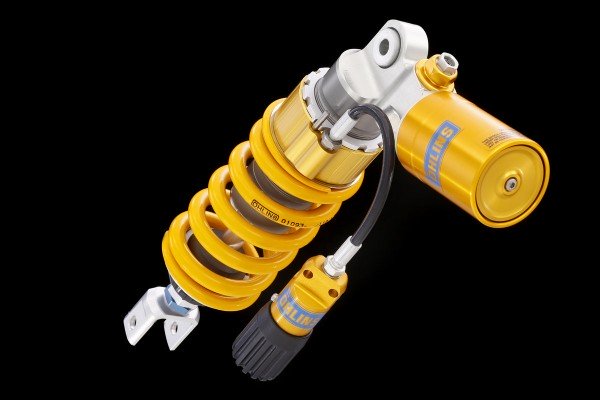

The STX46 Street Performance Line is based on Öhlins classic monotube design and developed for naked sports bikes, street performance bikes, and Adventure bikes.
It features a large 46mm main piston and a gas reservoir that can be within the main body or external using a hose or piggyback mounted reservoir.
With adjustable damping, you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike.
Depending on the application, the shock absorber features a mechanic or hydraulic preload adjustment as well as adjustable rebound and compression damping.
Type Code: S46DR1
Tech
- Monotube shock absorber
- Öhlins well proven design
- Adjustable rebound damping and compression
- A range of spring rates available
- Maintenance possibilities
- Optional hydraulic spring pre loader
- Available to a large range of bike models
Spec. by Application for HO 216
Application: 2021-2023 Honda CB500X
Notes:
Mounting Length: 318 mm
Stroke: 65.5 mm
Spring Rate: 110 n/m
Recommended Ohlins Oil: 01309
Fitted Spring: 60026-54 (Y)
Mounting Position: Rear Mono
Type code: S46DR1
Product Family: STX 46 Street
Fitment
Fitment
This item may fit other vehicles not listed here.| Honda | CB500X | 2021-2023 |
